Whether your an expert Volkswagen Passat mobile electronics installer, Volkswagen Passat fanatic, or a novice Volkswagen Passat enthusiast with a 2004 Volkswagen Passat, a car stereo wiring diagram can save yourself a lot of time. Automotive wiring in a 2004 Volkswagen Passat vehicles are becoming increasing more difficult to identify due to the installation of more advanced factory oem electronics.

My 2004 vw Passat has Monsoon stereo. It works from time to time and when isn't working, there is a check on the stereo display. I've searched pretty thoroughly, so apologies if this is a dead horse. I'll be installing either an F90BT or an F700BT in a 2004 VW Passat with the monsoon system (double-din).

One of the most time consuming tasks with installing an after market car stereo, car radio, satellite radio, xm radio, car speakers, tweeters, car subwoofer, crossovers, audio equalizer, car amplifier, mobile amp, car amplifier, mp3 player, ipod or any car audio electronics is identifying the correct color car audio wires for your 2004 Volkswagen Passat.

The Modified Life staff has taken all its Volkswagen Passat car radio wiring diagrams, Volkswagen Passat car audio wiring diagrams, Volkswagen Passat car stereo wiring diagrams, Volkswagen Passat car radio wiring schematics, Volkswagen Passat car wiring diagrams and cataloged them online for use by our visitors for free. Our automotive wiring diagrams allow you to enjoy your new mobile electronics rather than spend countless hours trying to figure out which wires goes to which 2004 Volkswagen Passat part or component.

Feel free to use any Volkswagen Passat car stereo wiring diagram that is listed on Modified Life but keep in mind that all information here is provided “as is” without any warranty of any kind and most of the car audio wiring diagrams listed on our enthusiast website are submitted by the Modified Life community. Use of the Volkswagen Passat wiring information is at your own risk. Always verify all wires, wire colors and diagrams before applying any information found here to your 2004 Volkswagen Passat.

Questions

If you have any questions pertaining to the audio system in the 2004 Volkswagen Passat, please feel free to post it at the bottom of this page and either we’ll do our best to find you the information you need or hopefully someone in the Modified Life community will have the information you’re looking for.

Request a Car Stereo Wiring Diagram

If you can’t find a particular car audio wire diagram on Modified Life, please feel free to post a car radio wiring diagram request at the bottom of this page and we’ll do our best to find you the diagram or schematic you need for your mobile audio installation.

Adding More Information

If you would like to help the Modified Life community by adding any missing information or adding a new car audio wire diagram to our resource, please feel free to post it at the bottom of this page.

2004 Volkswagen Passat Car Stereo Wiring Schematic

Car Radio Battery Constant 12v+ Wire: Red/Blue
Car Radio Accessory Switched 12v+ Wire: This vehicle uses the can data network for accessory turn on.
Car Radio Ground Wire: Brown
Car Radio Illumination Wire: This vehicle uses the can data network for illumination and dimmer controls.
Car Stereo Dimmer Wire: N/A
Car Stereo Antenna Trigger Wire: N/A
Car Stereo Amp Trigger Wire: N/A

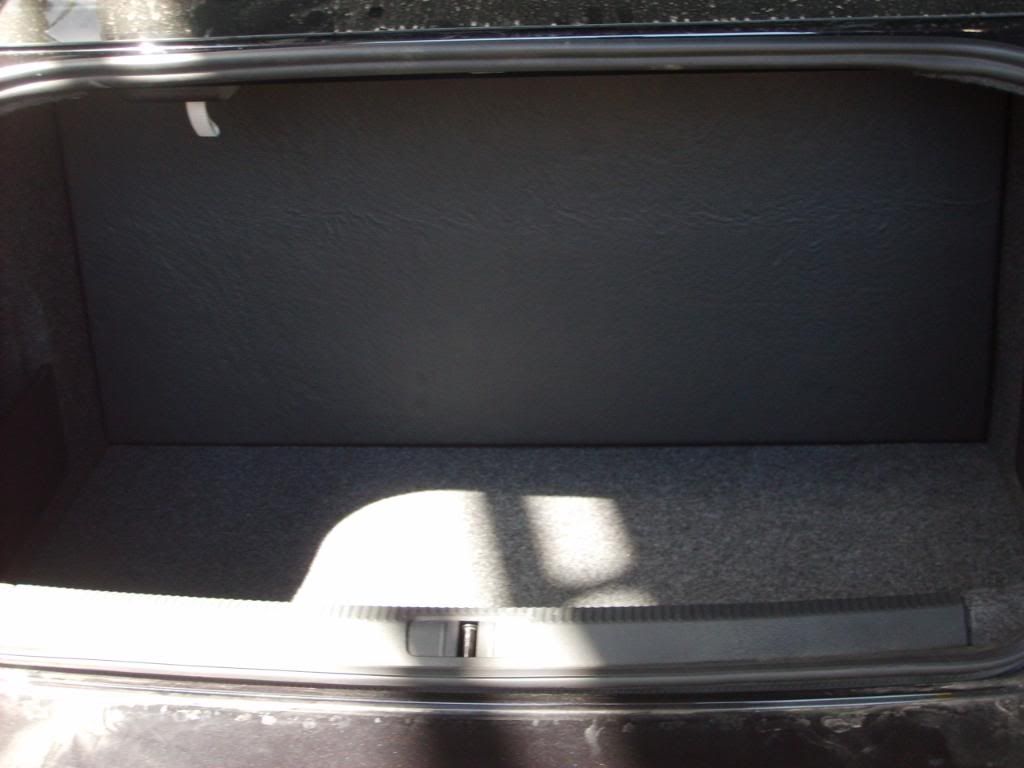

Car Stereo Amplifier Location: Under the rear deck.
Car Audio Front Speakers Size: N/A
Car Audio Front Speakers Location: N/A
Left Front Speaker Positive Wire (+): Red/Green (These wires also go to the front left tweeter.)
Left Front Speaker Negative Wire (-): Brown/Green
Right Front Speaker Positive Wire (+): Red (These wires also go to the front right tweeter.)
Right Front Speaker Negative Wire (-): Brown/Red
Car Audio Rear Speakers Size: N/A
Car Audio Rear Speakers Location: N/A
Left Rear Speaker Positive Wire (+): Blue/White (These wires also go to the rear left tweeter.)
Left Rear Speaker Negative Wire (-): Brown/White
Right Rear Speaker Positive Wire (+): Blue (These wires also go to the rear right tweeter.)
Right Rear Speaker Negative Wire (-): Brown/Blue

Whether your an expert Volkswagen Jetta mobile electronics installer, Volkswagen Jetta fanatic, or a novice Volkswagen Jetta enthusiast with a 2004 Volkswagen Jetta, a car stereo wiring diagram can save yourself a lot of time. Automotive wiring in a 2004 Volkswagen Jetta vehicles are becoming increasing more difficult to identify due to the installation of more advanced factory oem electronics.

One of the most time consuming tasks with installing an after market car stereo, car radio, satellite radio, xm radio, car speakers, tweeters, car subwoofer, crossovers, audio equalizer, car amplifier, mobile amp, car amplifier, mp3 player, ipod or any car audio electronics is identifying the correct color car audio wires for your 2004 Volkswagen Jetta.

The Modified Life staff has taken all its Volkswagen Jetta car radio wiring diagrams, Volkswagen Jetta car audio wiring diagrams, Volkswagen Jetta car stereo wiring diagrams, Volkswagen Jetta car radio wiring schematics, Volkswagen Jetta car wiring diagrams and cataloged them online for use by our visitors for free. Our automotive wiring diagrams allow you to enjoy your new mobile electronics rather than spend countless hours trying to figure out which wires goes to which 2004 Volkswagen Jetta part or component.

Feel free to use any Volkswagen Jetta car stereo wiring diagram that is listed on Modified Life but keep in mind that all information here is provided “as is” without any warranty of any kind and most of the car audio wiring diagrams listed on our enthusiast website are submitted by the Modified Life community. Use of the Volkswagen Jetta wiring information is at your own risk. Always verify all wires, wire colors and diagrams before applying any information found here to your 2004 Volkswagen Jetta.

2004 passat stereo installation parts

Questions

Moto gp pc games. If you have any questions pertaining to the audio system in the 2004 Volkswagen Jetta, please feel free to post it at the bottom of this page and either we’ll do our best to find you the information you need or hopefully someone in the Modified Life community will have the information you’re looking for.

Request a Car Stereo Wiring Diagram

If you can’t find a particular car audio wire diagram on Modified Life, please feel free to post a car radio wiring diagram request at the bottom of this page and we’ll do our best to find you the diagram or schematic you need for your mobile audio installation.

Adding More Information

If you would like to help the Modified Life community by adding any missing information or adding a new car audio wire diagram to our resource, please feel free to post it at the bottom of this page.

2004 Volkswagen Jetta Car Radio Wiring Guide for Monsoon Audio

2004 Passat Specs

Car Radio Battery Constant 12v+ Wire: Plug #3, Pin #7
Car Radio Accessory Switched 12v+ Wire: Plug #3, Pin #4
Car Radio Ground Wire: Plug #3, Pin #8
Car Radio Illumination Wire: Plug #3, Pin #6
Car Stereo Dimmer Wire: N/A
Car Stereo Antenna Trigger Wire: N/A
Car Stereo Amp Trigger Wire: N/A
Car Stereo Amplifier Location: N/A
Car Audio Front Speakers Size: N/A
Car Audio Front Speakers Location: N/A
Left Front Speaker Positive Wire (+): Plug #2, Pin #5
Left Front Speaker Negative Wire (-): Plug #2, Pin #6
Right Front Speaker Positive Wire (+): Plug #2, Pin #3
Right Front Speaker Negative Wire (-): Plug #2, Pin #4
Car Audio Rear Speakers Size: N/A
Car Audio Rear Speakers Location: N/A
Left Rear Speaker Positive Wire (+): Plug #2, Pin #7
Left Rear Speaker Negative Wire (-): Plug #2, Pin #8
Right Rear Speaker Positive Wire (+): Plug #2, Pin #1
Right Rear Speaker Negative Wire (-): Plug #2, Pin #2

Car Stereo Installation Kits

Signal for Anti-Theft Alarm System Wire: Plug #3, Pin #1
Data Link Connector (DLC) K-Wire: Plug #3, Pin #3
Battery Supply Constant 12v+ Wire for Anti-Theft System (SAFE): Plug #3, Pin #5

Stereo Installation Kits

CD Changer Data In Wire: Plug #1, Pin #13
CD Changer Data Out Wire: Plug #1, Pin #14
CD Changer Clock Wire: Plug #1, Pin #15
CD Changer Constant Battery 12v+ Wire: Plug #1, Pin #16
CD Changer Control Signal Wire: Plug #1, Pin #17
CD Changer Ground Wire: Plug #1, Pin #18
CD Changer Left Line Out Wire: Plug #1, Pin #19
CD Changer Right Line Out Wire: Plug #1, Pin #20

2004 Passat Interior

This wiring diagram applies to the “Premium V” Monsoon Audio System.
